CIRS动态胸腔体膜  CIRS008A模体 CIRS体模008A

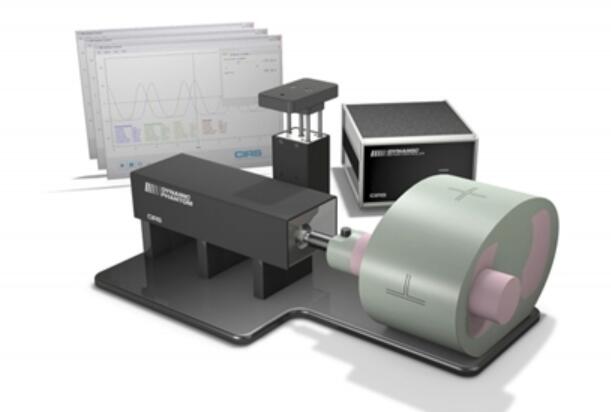

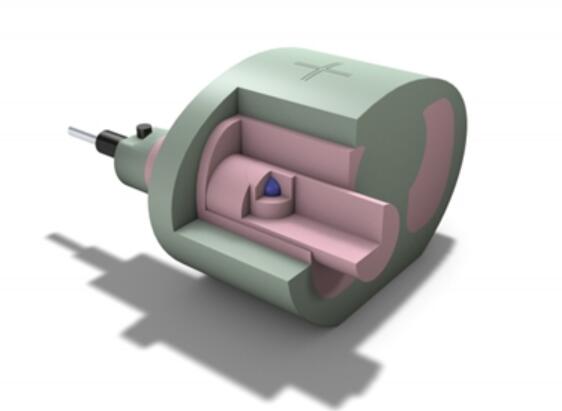

是一种精密的研究和减少肿瘤在肺内运动的影响的仪器。它提供了已知的，准确的和可重复的三维目标运动的组织等效幻影。它的设计是为了 分析图像引导放射 中的图像采集、规划和剂量传递。这个幻体在形状、比例和组成上代表了一个普通的人类胸部。将装有球形目标和或各种探测器的肺等效棒插入幻影体的肺等效叶中。身体连接到运动执行器盒，通过肺等效棒的直线平移和旋转，诱导三维目标运动。由于它与周围物质的密度匹配，放射学上看不出棒子本身的运动。给定目标的密度差，可以求解目标及其运动。目标和代理运动由CIRS运动控制软件独立控制。图形用户界面提供了无限多样的运动，同时简化了操作的动态胸腔幻影直观的水平 参考单独的CIRS腔和放大器;可用于插入选项008A-06-CVXX-XX的可用腔室插头代码列表

CIRS动态胸腔体膜  CIRS008A模体 CIRS体模008A

Features and Benefits

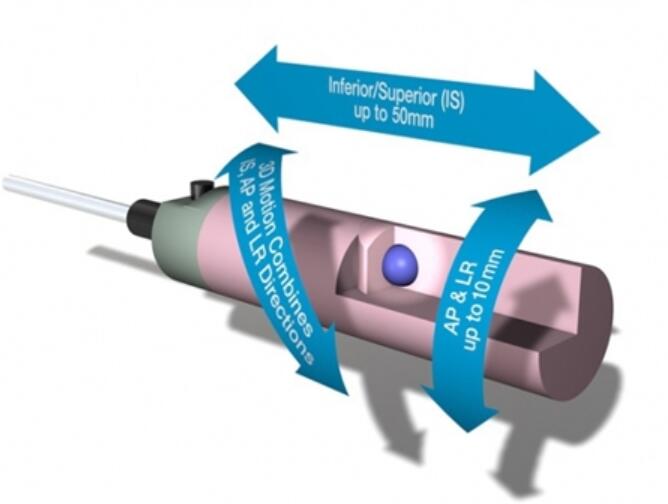

• Complex 3D tumor motion within the lung
• Sub-millimeter accuracy and reproducibility
• Motion software enables different cycles, amplitudes and wave forms
• Tissue equivalent from 50 keV to 25 MeV
• Compatible with TLD, MOSFET, Dose Gel, micro-chamber, PET/CT targets and film
• Surrogate breathing platform accommodates numerous gating devices
• Graphical user interface simplifies operation of the Model 008A
• Instantly Start, Stop, Pause or Loop motion
• Adjust motion amplitude, cycle time and phase shift with pull downmenus and slider bars
• Real-time display of target and surrogate motion parameters

CIRS动态胸腔体膜  CIRS008A模体 CIRS体模008A

Technical Specifications

• Dimensions: 67 cm x 32 cm x 28 cm (26" x 13" x 11")
• Weight: 17.2 kg (46 lb)
• Power: 110-250 VAC, 50/60 Hz
• Amplitude, IS: ± 25 mm
• Amplitude, AP/LR: ± 10 mm
• Amplitude, Surrogate: ± 25 mm
• Max. Surrogate Platform Load: 5.4 kg (12 lb)
• Motion Accuracy: ± 0.1 mm
• Cycle Time: 1 - ∞ (adjusted based on amplitude)
• Waveforms: sin(t), 1-2cos^4(t), 1-2cos^6(t), sawtooth, sharkfin

System Requirements

• Windows XP® / Vista / Windows 7 (32 Bit Versions only)
• Pentium 3® or equivalent
• 512 MB RAM
• 2 MB of available disk space

Materials Included

• (1) Control unit with firmware installed (110 - 220V, 50 - 60Hz)
• (1) Motion actuator box
• (1) Gating actuator box
• (1) base plate)
• (1) CIRS Motion Control Software CD-Rom
• (1) 1/8 hex key wrench
• (1) Four in one screwdriver
• (1) Network cable CAT5e, 75’
• (1) DB 25 male to male cable
• (1) USB cable 1’ A/B male
• (2) USB extender terminals
• (1) Bag of miscellaneous replacement fasteners
• (2) 2 Amp fast acting fuses
• (1) Power cord
• (1) User’s manual
• (1) Carry Case
•
